CXR Interpretation: Reading Between the Ribs
A comprehensive diagnostic guide for systematic Chest X-Ray (CXR) interpretation. This presentation details the RIP protocol for image quality assessment and the ABCDE algorithm for structured analysis. It features visual guides for pattern recognition, identifying hidden pathology in radiological review areas, and diagnosing common conditions like pulmonary edema, COPD, and pneumothorax.
Slides
15
Timeline
48 hours
Date
Mar 2026
Key Features

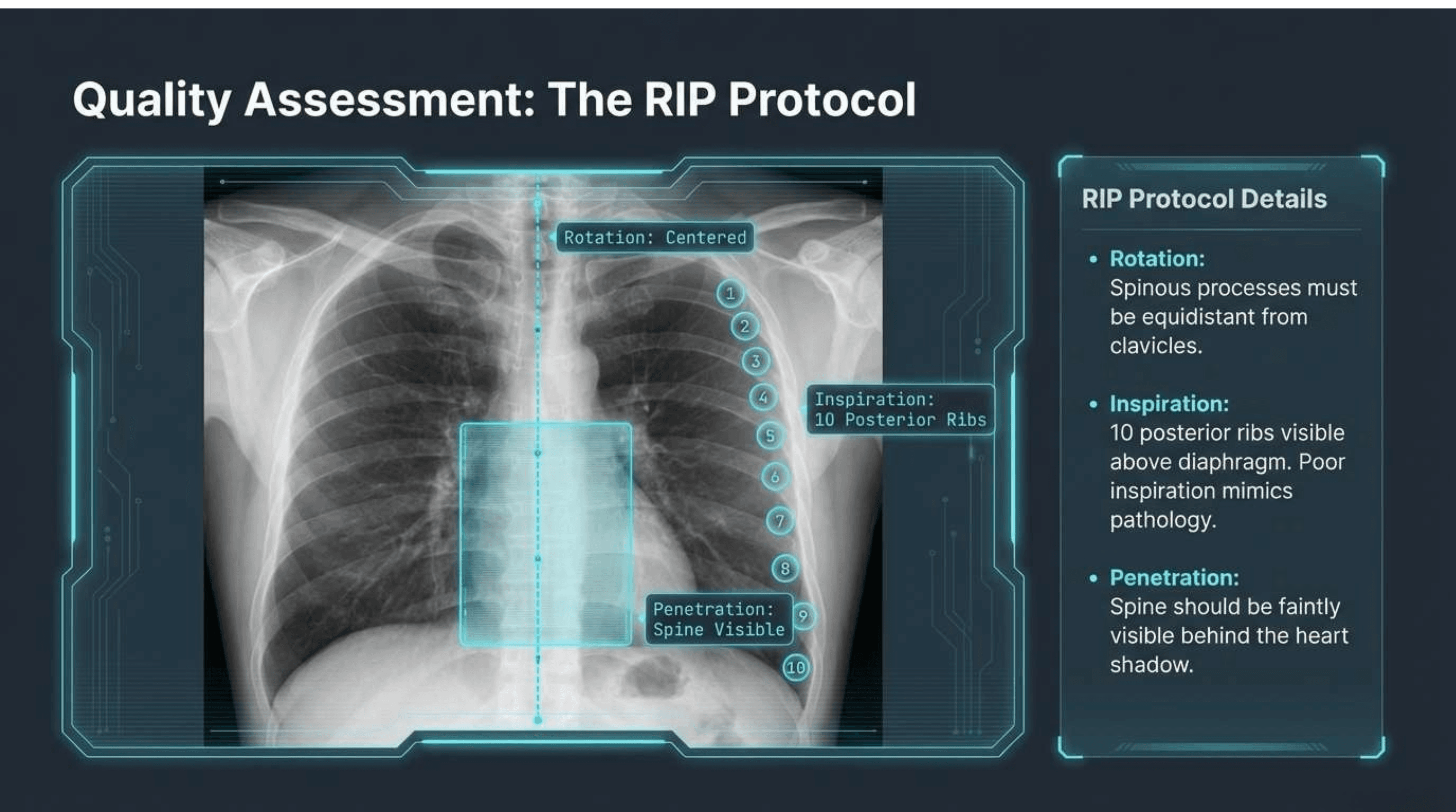

- ✓Quality Assessment: Details the RIP Protocol (Rotation, Inspiration, Penetration) to ensure optimal image evaluation.

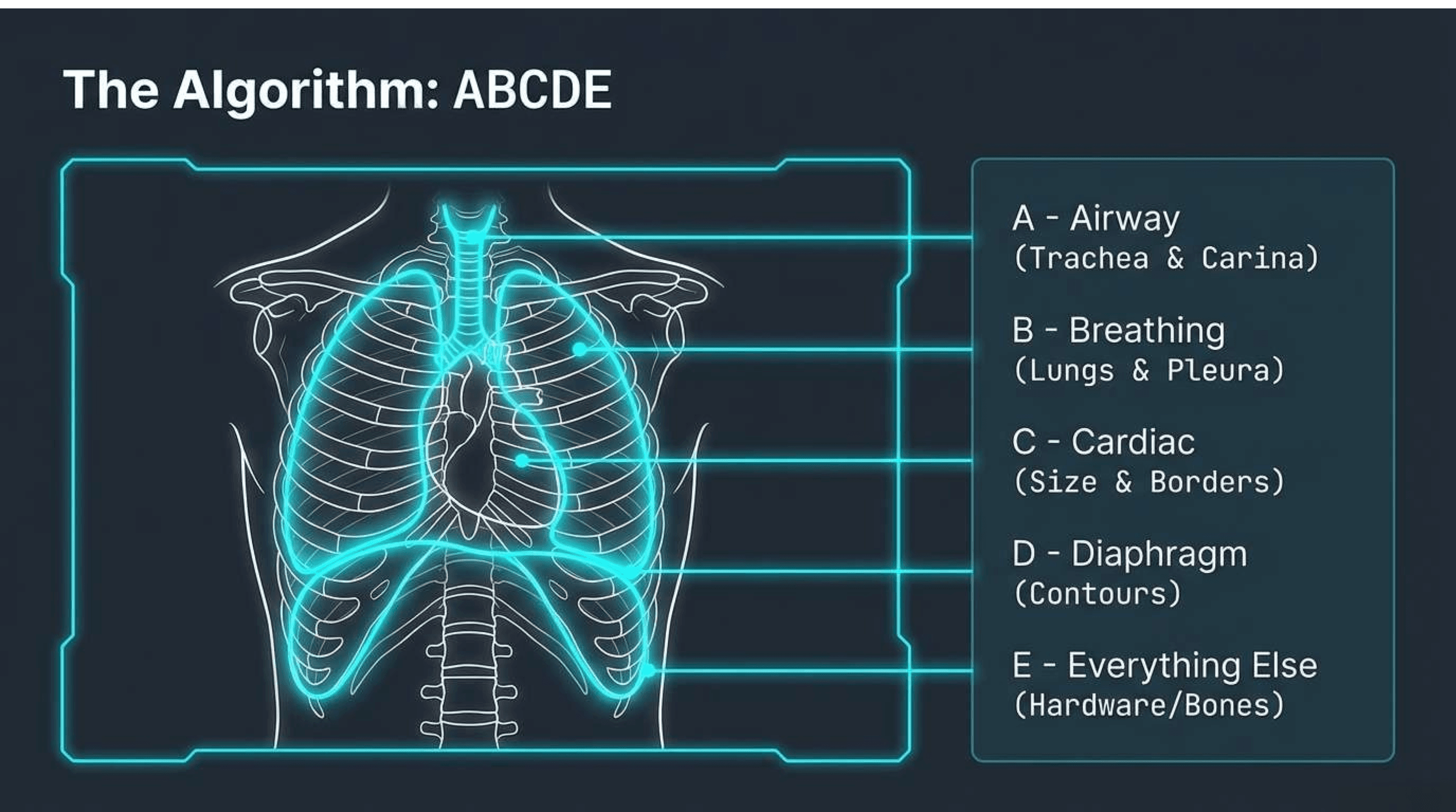

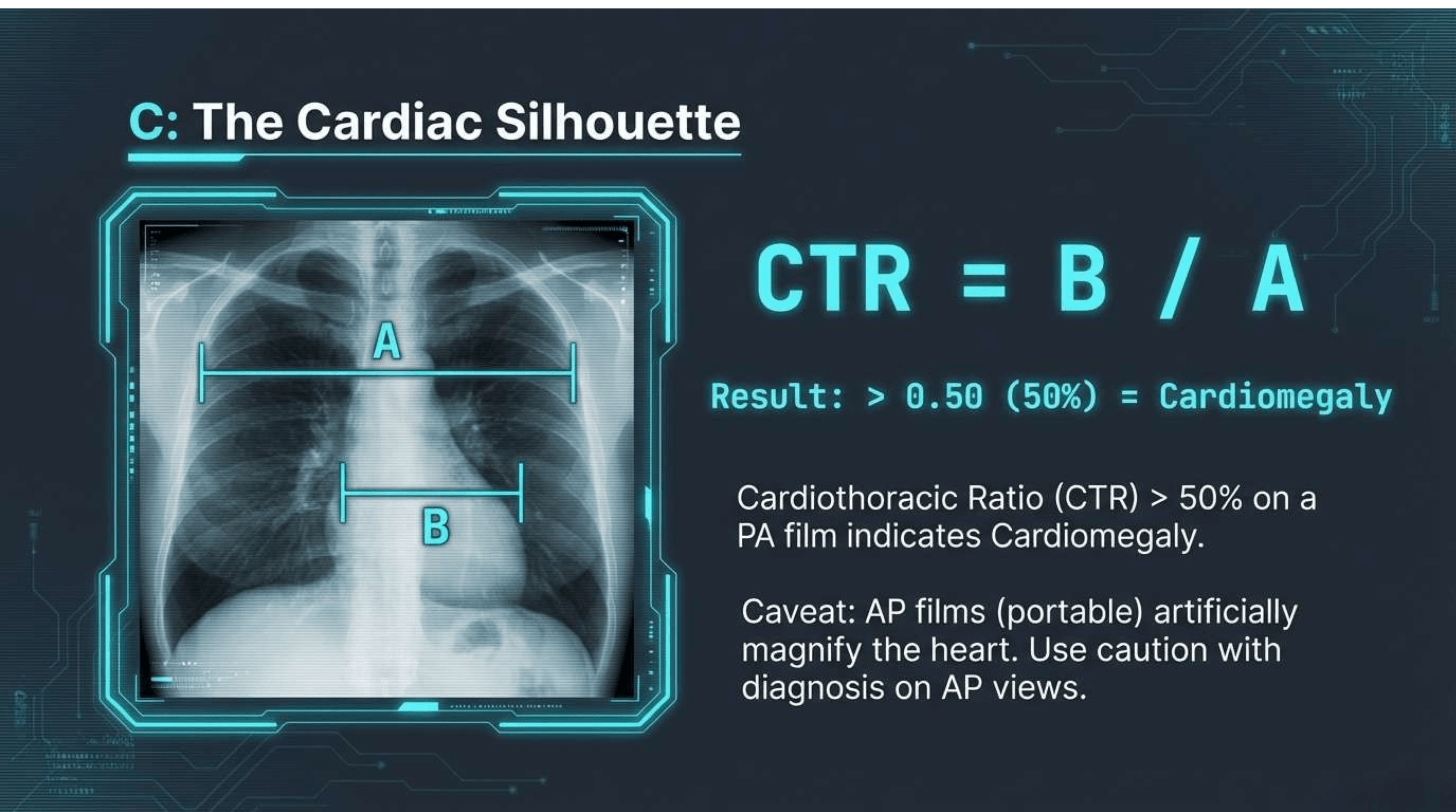

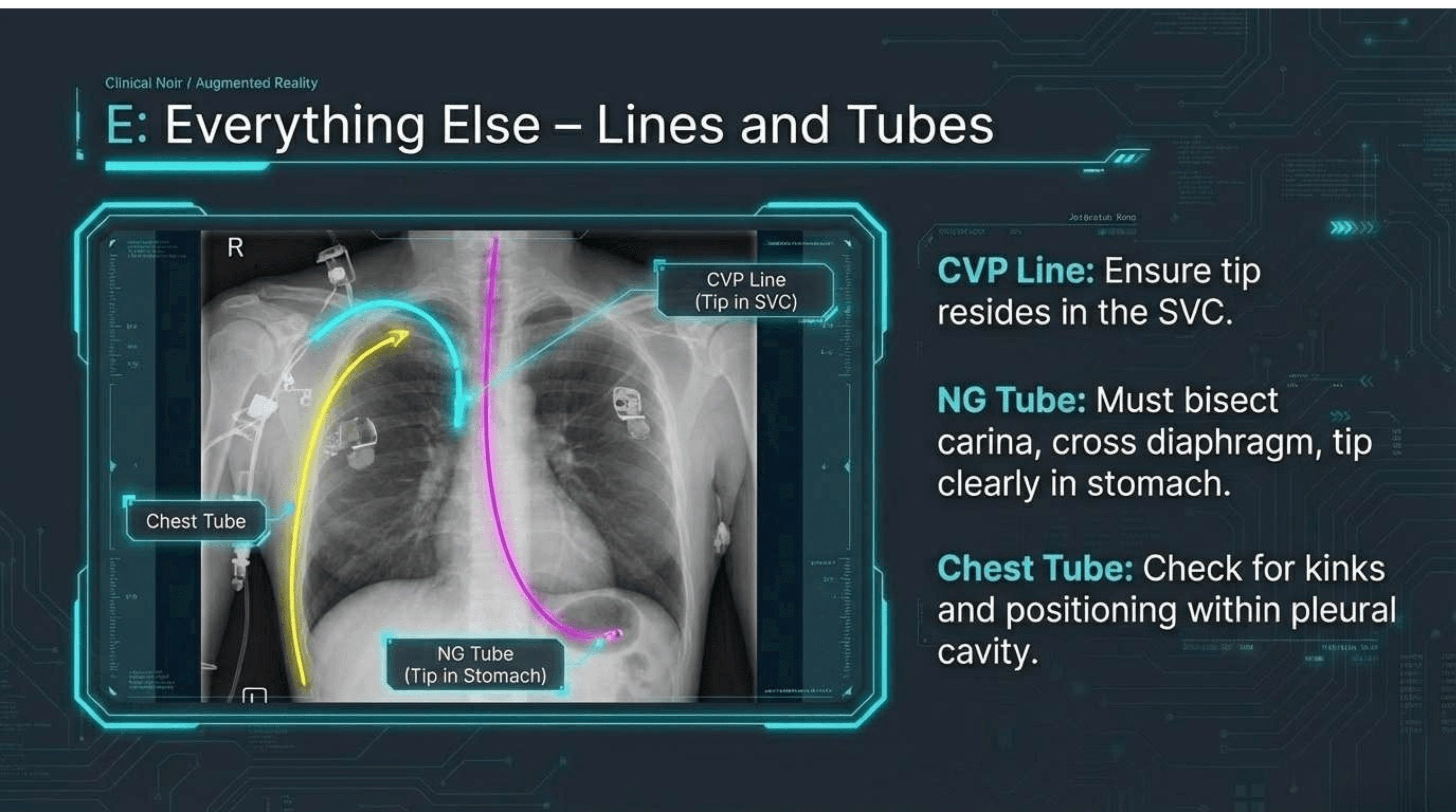

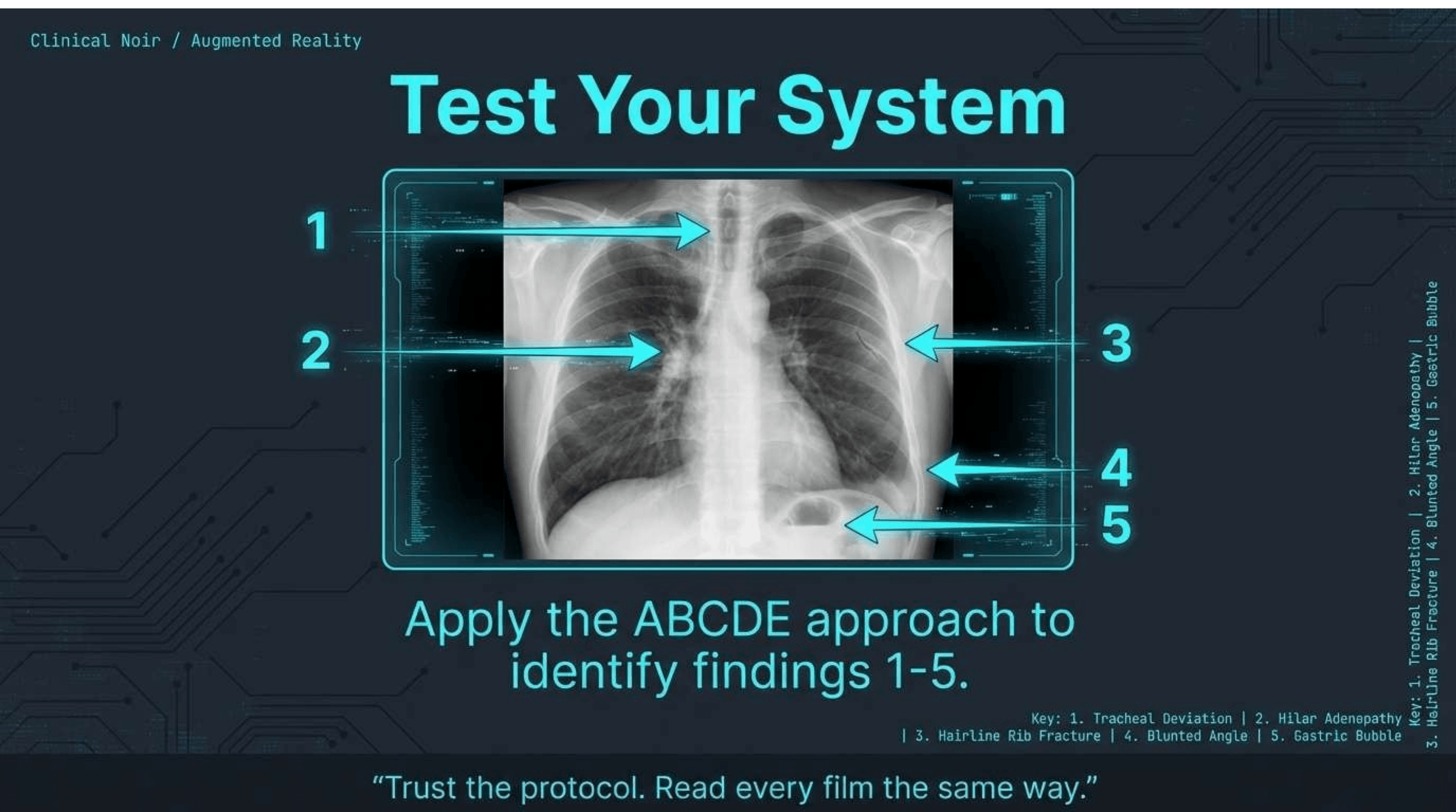

- ✓Systematic Algorithm: Utilizes the ABCDE method (Airway, Breathing, Cardiac, Diaphragm, Everything Else) for comprehensive analysis.

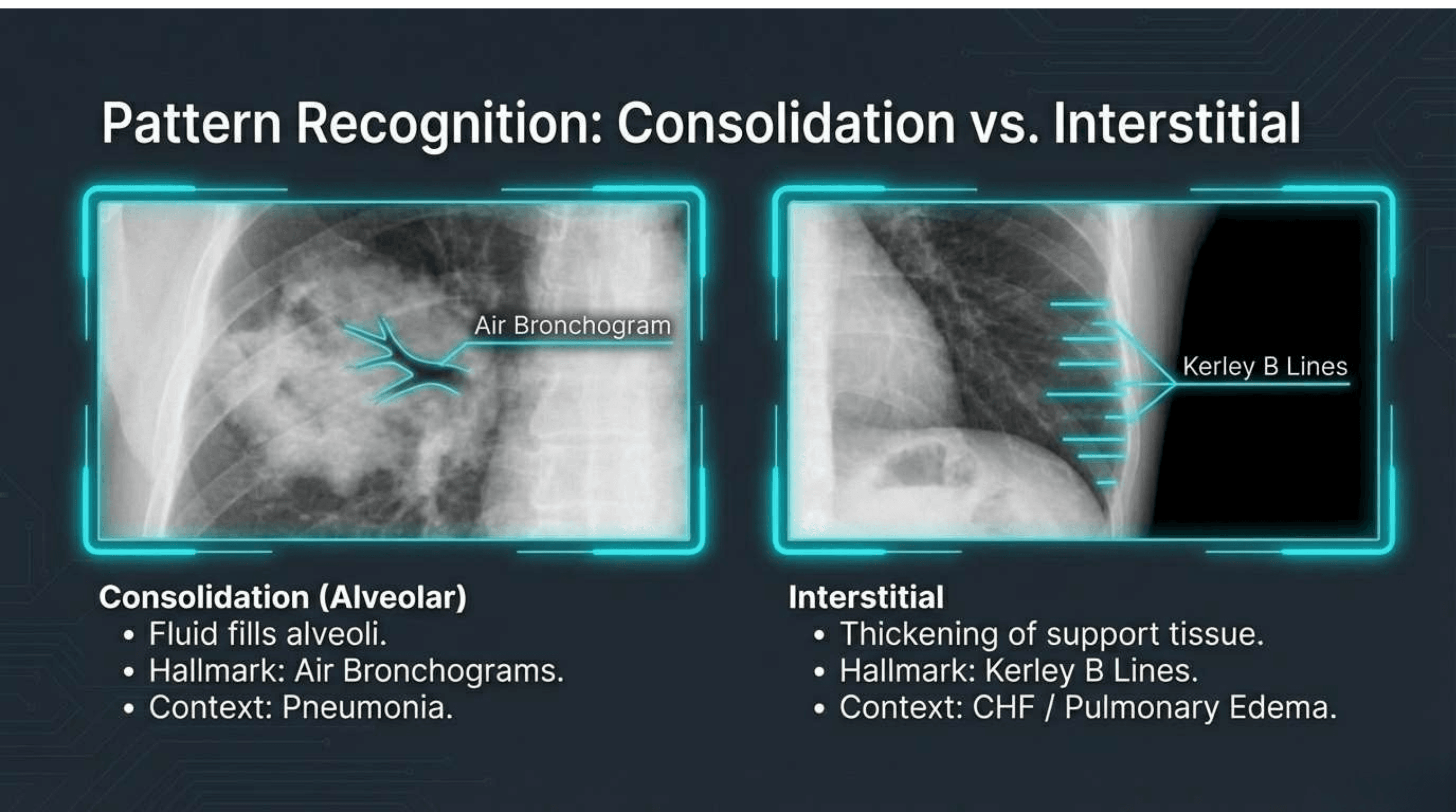

- ✓Pattern Recognition: Differentiates alveolar consolidation (Air Bronchograms) from interstitial thickening (Kerley B Lines).

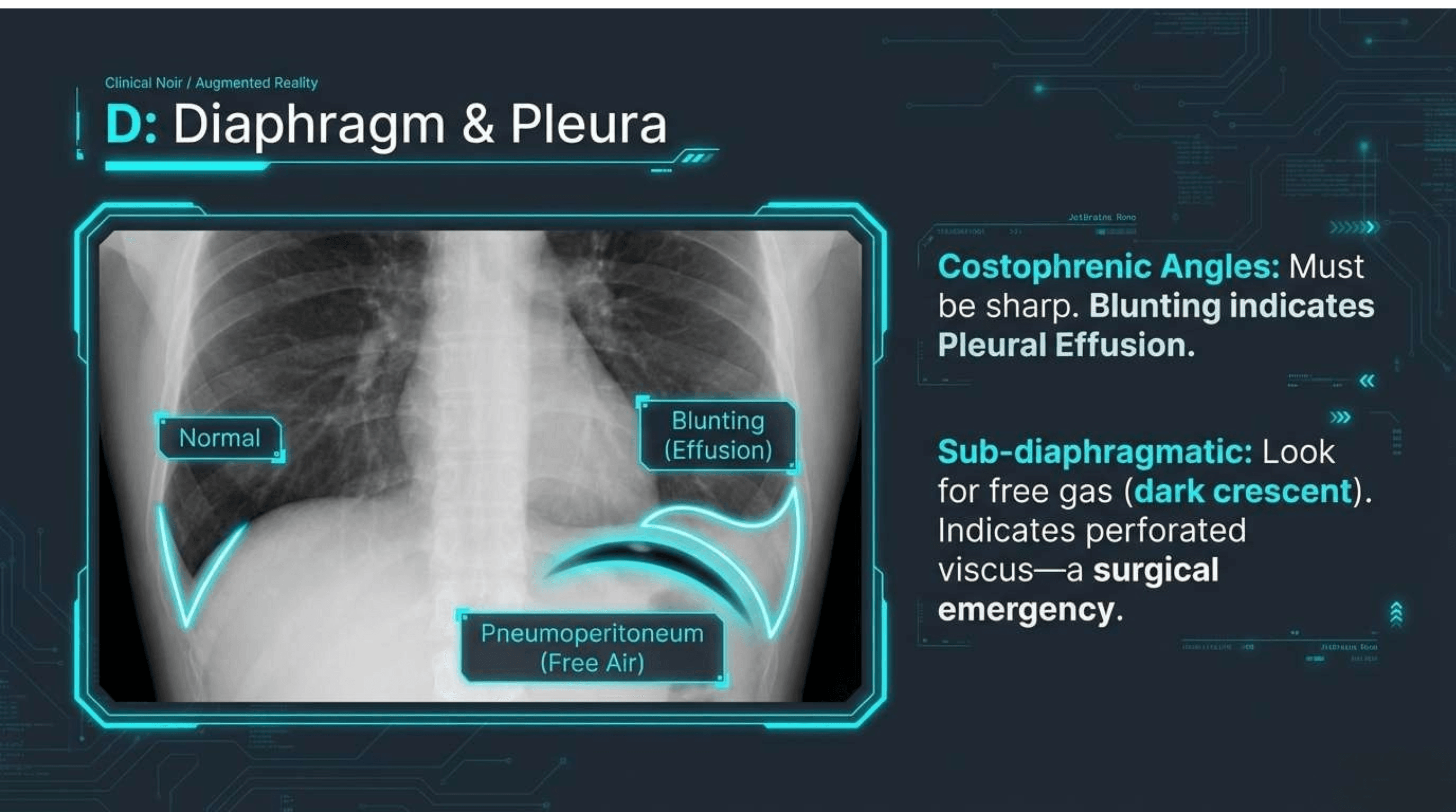

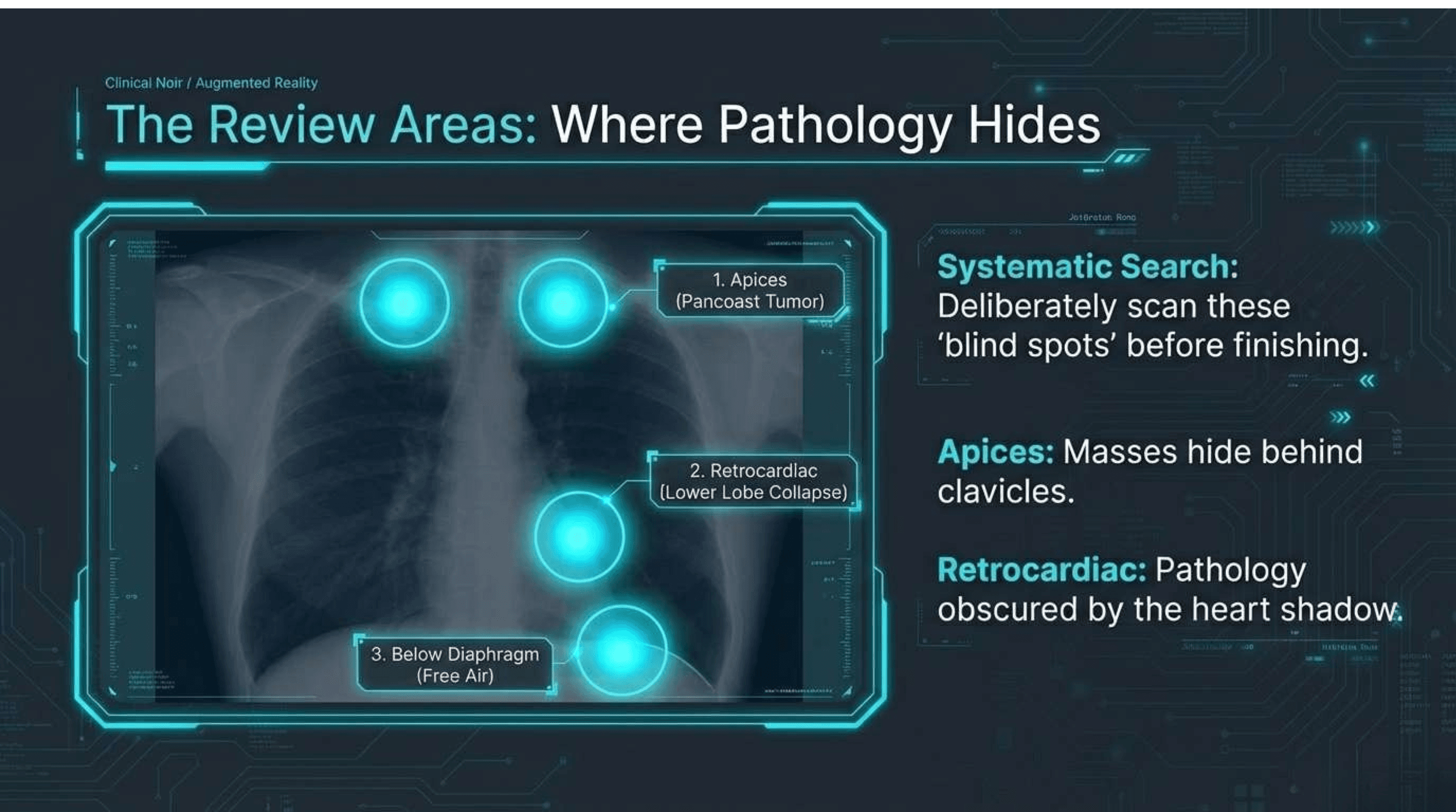

- ✓Blind Spot Identification: Highlights critical review areas including the apices, retrocardiac region, and sub-diaphragmatic space where pathology often hides.

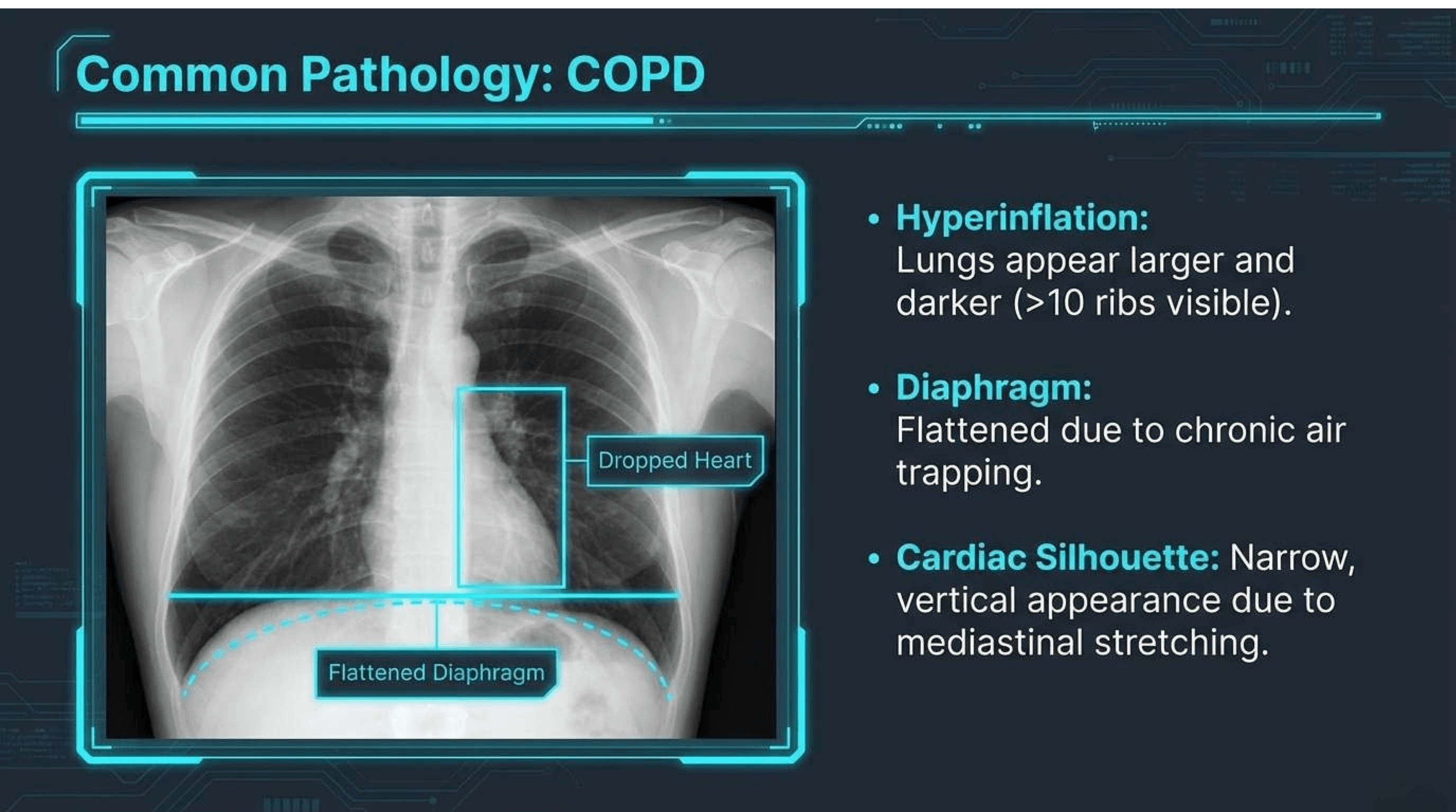

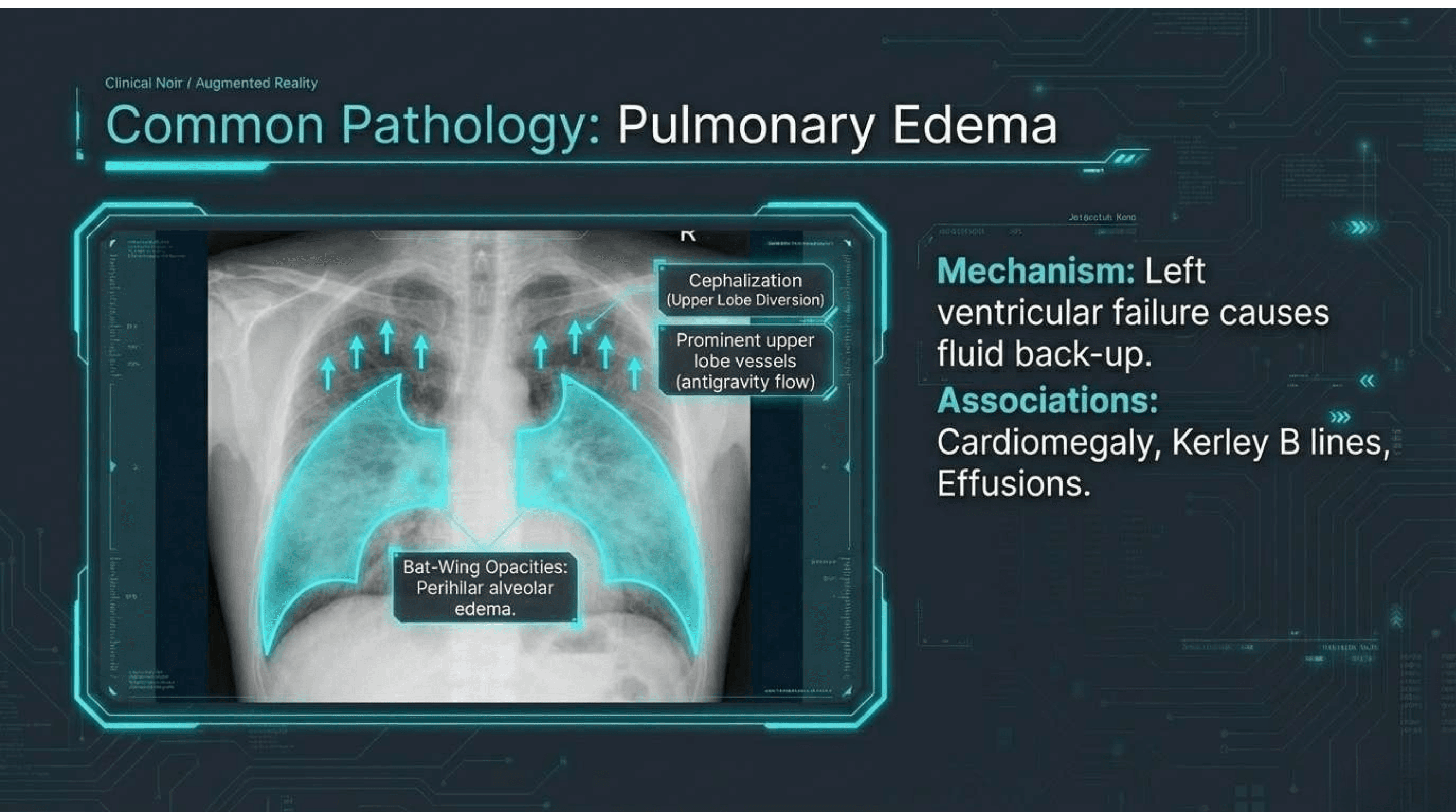

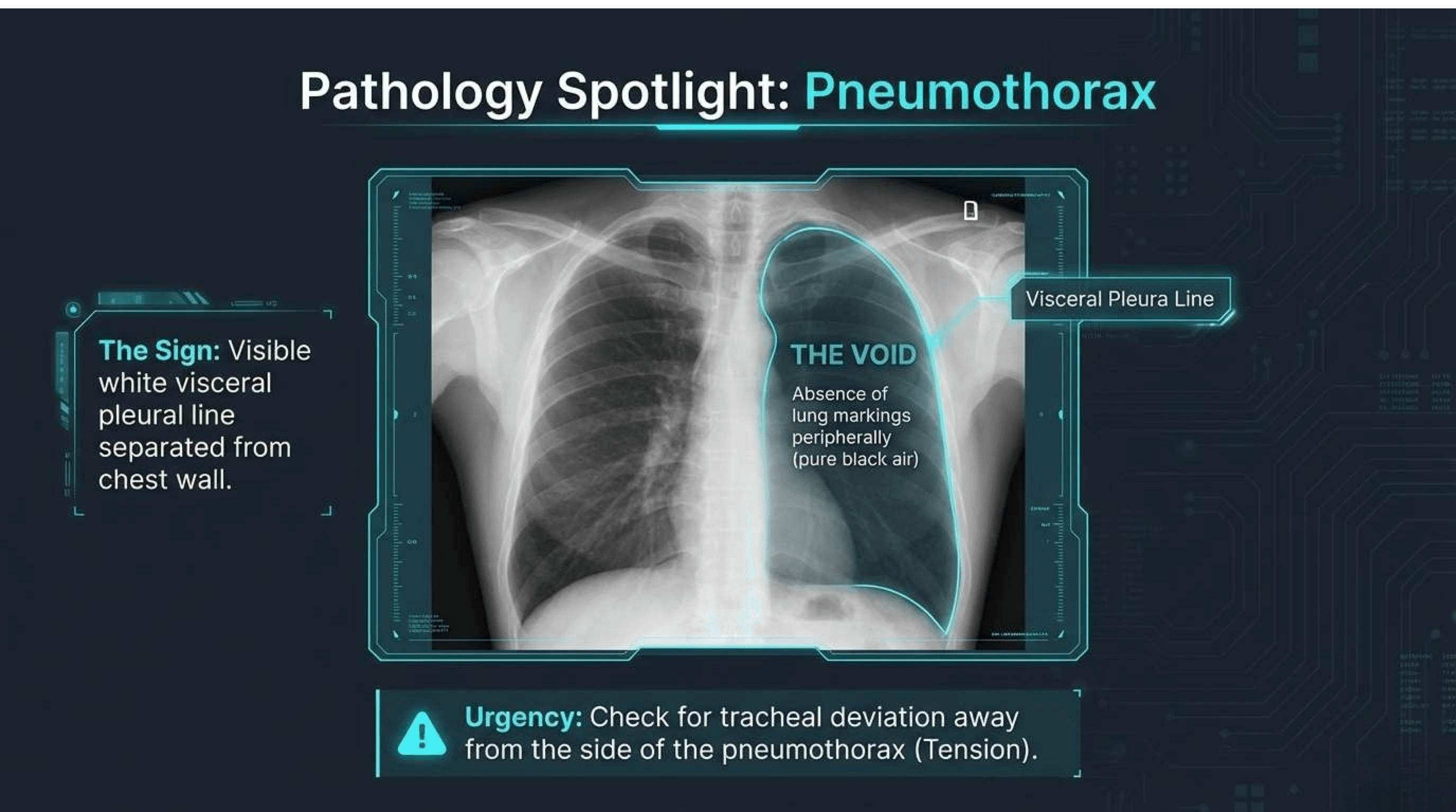

- ✓Common Pathologies: Provides visual hallmarks for diagnosing Pulmonary Edema (Bat-Wing Opacities, Cephalization) and COPD (flattened diaphragm, dropped heart).
Full Presentation

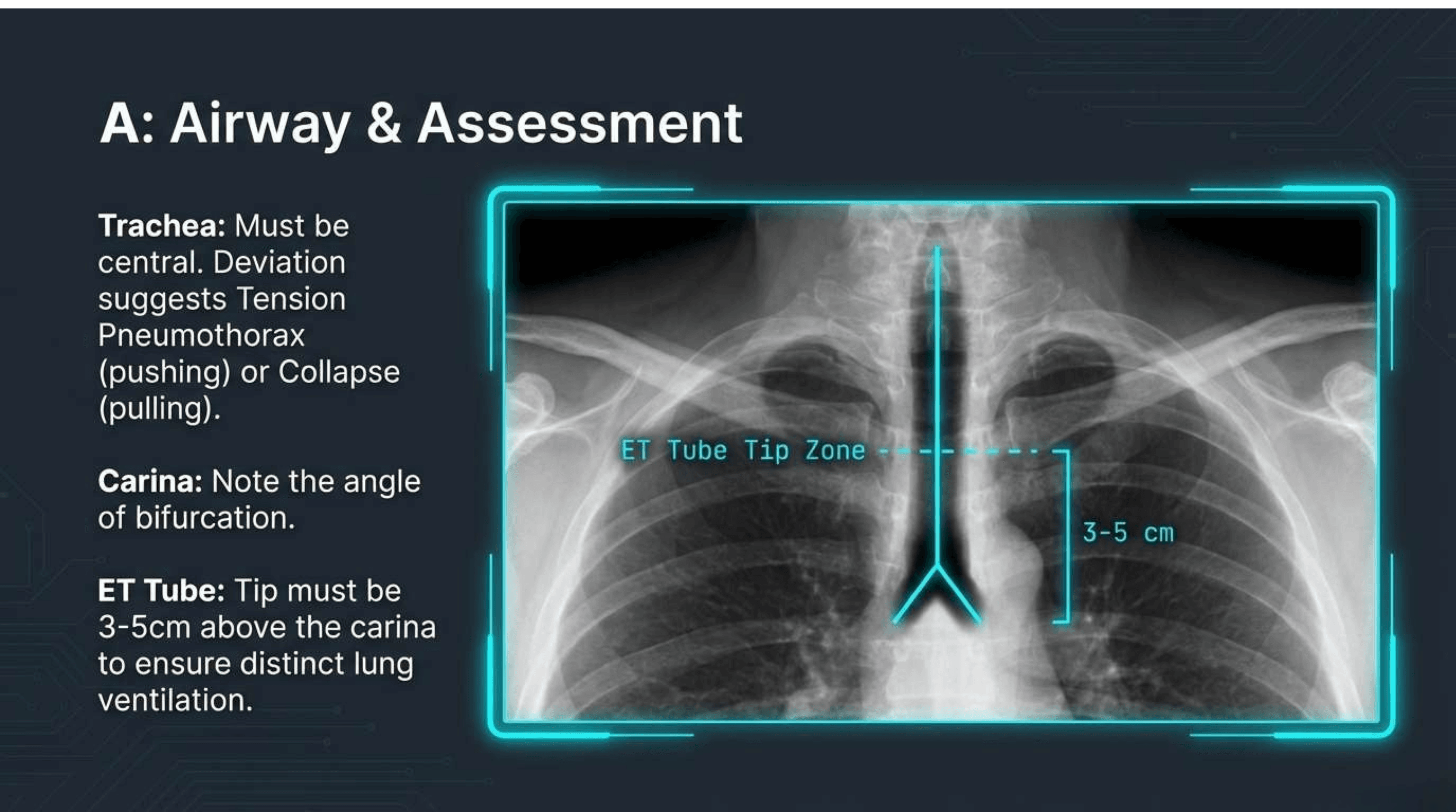

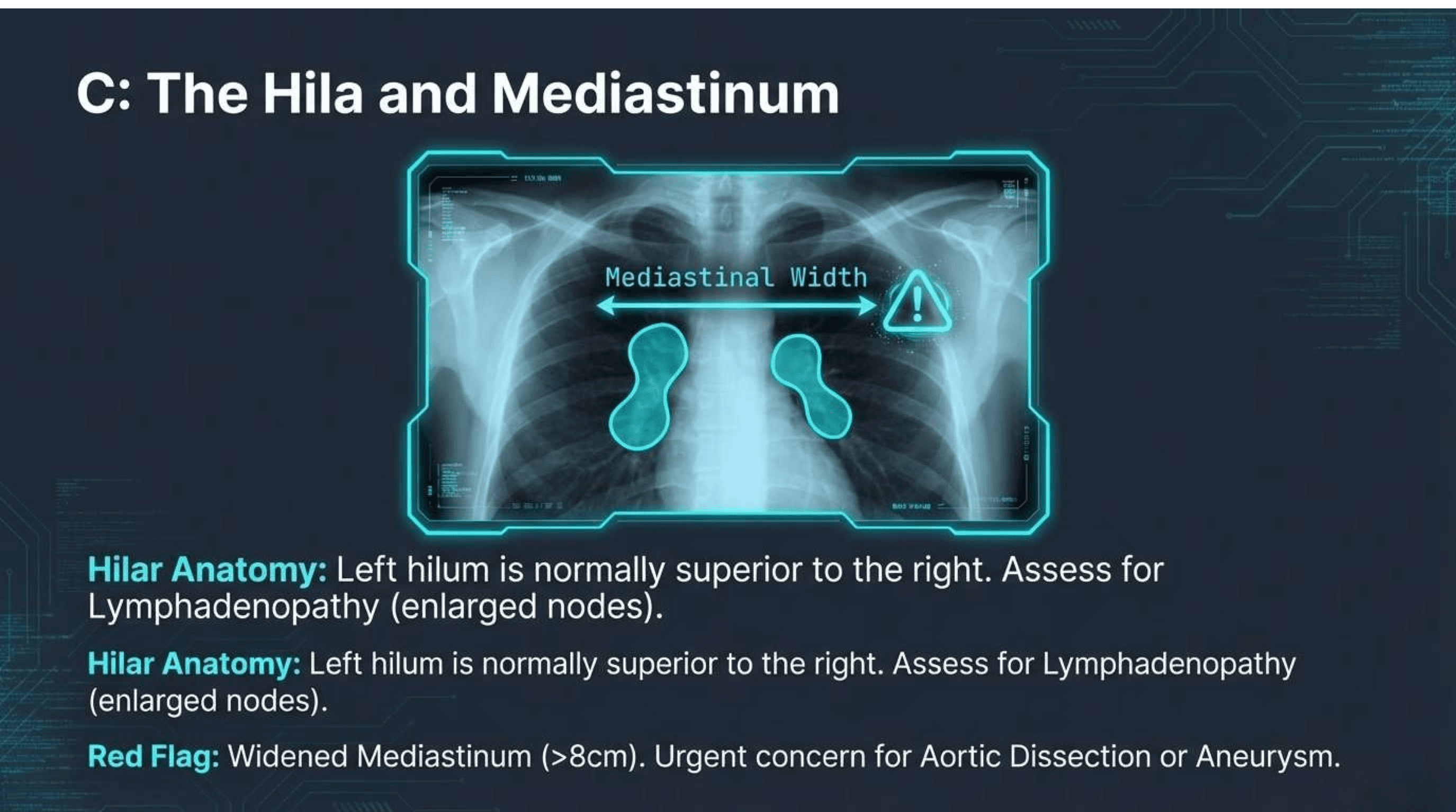

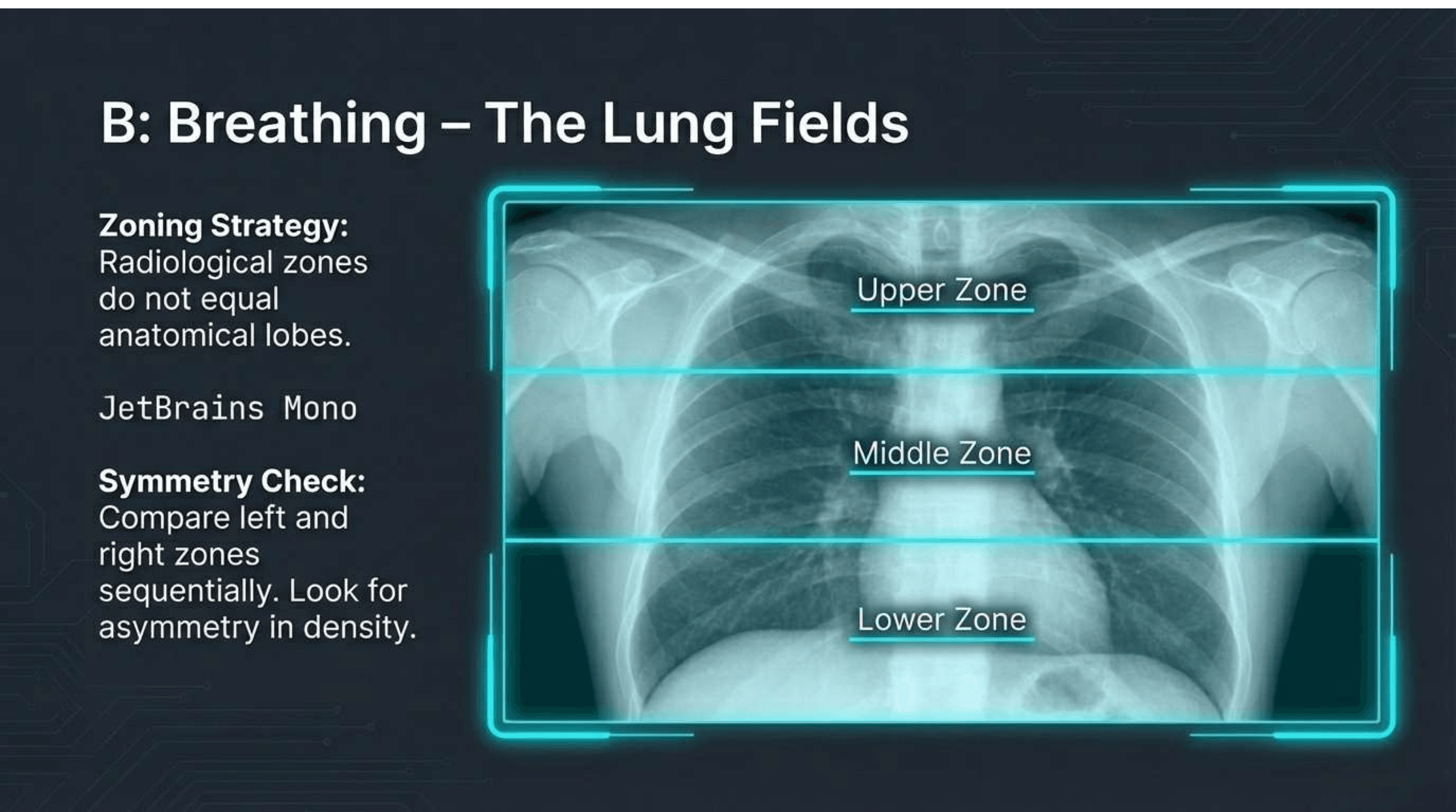

Slide 1
